11kW Drum Fertilizer Screener Machine For Bulk Materials Customized

  • 1
  • 2
  • 3

Model Number : GS1.8X6.0

Place of Origin : China

MOQ : 1

Price : Negotiable

Application : Screening fertilizer granules

Installation Type : Stationary / Portable

Type : Screening Equipment

Noise Level : < 75 dB

Dimensions (Lxwxh) : 2000x1500x1800 mm

Screen Mesh Size : 1-50 mm

Operating Voltage : 220V/380V

Weight : 500-2000 kg

Screening Capacity : 1-50 tons per hour

Material : Stainless Steel / Carbon Steel

Power Source : Electric Motor

Vibration Frequency : 960-1440 RPM

Screening Layers : 1-3 layers

Motor Power : 1.5-7.5 kW

Packaging Details : with wooden boxes in container

Delivery Time : 30 work days

Payment Terms : T/T

Supply Ability : to be determined

Contact Now

Drum Screener Machine – Multi-Grade Sieving Solution for Bulk Material Classification
Product Description
The Drum Screener Machine is a high-performance grading device designed for simultaneous separation of bulk materials into multiple particle size grades. It features a multi-layer nested screen mesh structure inside the rotating drum, where materials pass through different mesh sizes layer by layer as the drum rotates, achieving efficient and precise multi-grade classification in a single operation. The machine's optimized material flow path design reduces material retention and improves screening throughput. With high classification efficiency and flexible configuration, it serves as core equipment for material processing lines requiring refined product grading.
Application Scope
Specialized in multi-grade classification of various materials, widely applied in:
  • Mining & Aggregate Industry: Multi-grade screening of crushed stone, gravel, and ore particles
  • Fertilizer Industry: Classification of organic-inorganic compound fertilizer into different particle size specifications
  • Building Materials Industry: Grading of sand, cement additives, and lightweight aggregate products
  • Chemical Industry: Multi-specification sorting of granular chemicals and mixed powder materials
  • Agricultural Products Processing: Classification of seeds, grains, and processed agricultural by-products
Product Highlights
  • Multi-Grade Efficient Classification: Integrated multi-layer screen mesh enables one-time separation into multiple particle size grades, reducing the need for multiple screening procedures and saving production space.
  • Customizable Screen Configuration: Each screen layer can be customized with different specifications according to production needs, meeting diverse refined grading requirements.
  • Smooth Material Flow: Optimized internal guide plate design ensures uniform material distribution across each screen layer, preventing material accumulation and enhancing screening efficiency.
  • Stable & Durable Performance: Reinforced drum frame and wear-resistant screen mesh materials adapt to heavy-load continuous operation, extending equipment service life.
Technical Specifications
Model GS1.8X6.0
Cylinder Diameter 1800 mm
Cylinder Length 6000 mm
Speed 15 r/min
Dip Angle 2-2.5 °
Power 11 kW
Capacity 12-22 t/h
11kW Drum Fertilizer Screener Machine For Bulk Materials Customized

Product Tags:

11kW Fertilizer Screener



customized Fertilizer Screener



11kW bulk material screener


Buy cheap 11kW Drum Fertilizer Screener Machine For Bulk Materials Customized product

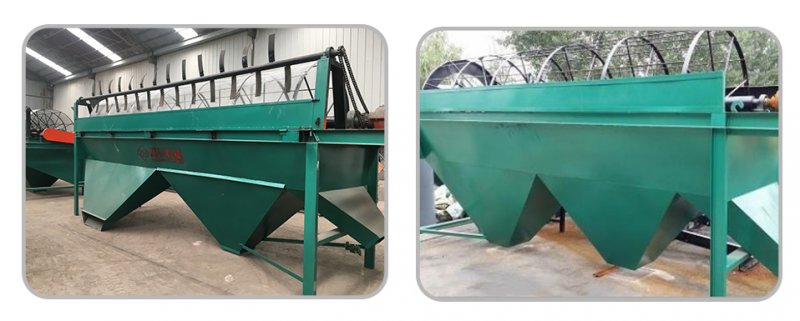

11kW Drum Fertilizer Screener Machine For Bulk Materials Customized Images
