High-Capacity NPK Fertilizer Production Line

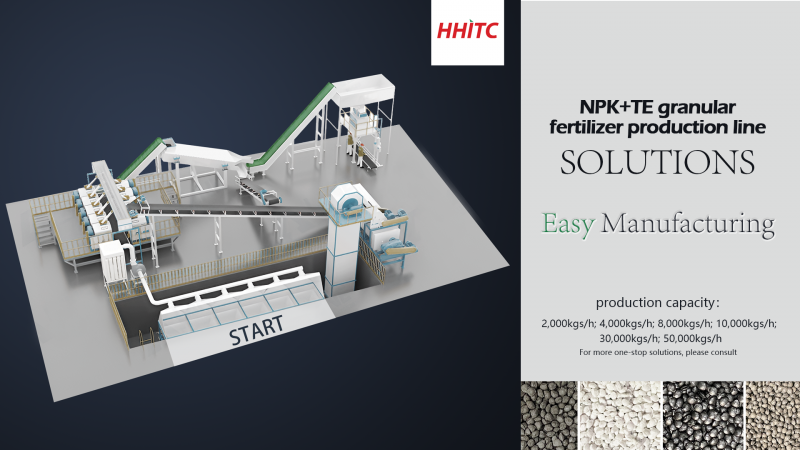

Production Process Overview
NPK raw materials including urea, ammonium phosphate, and potassium chloride are precisely weighed using a high-precision automatic batching system. After uniform mixing, materials are fed into a large-scale drum granulator with intelligent atomized binder spraying. Following granulation, materials undergo energy-efficient drying, cooling, and triple-layer precision screening. Oversized particles are crushed for recycling, while qualified granules proceed to automatic packaging (20-50kg/bag), fully compliant with GB/T 15063-2020 standards.
Application Scope
Designed for large-scale industrial fertilizer enterprises, national agricultural input suppliers, and major planting bases. This production line manufactures customized NPK compound fertilizers (including formulations like 15-15-15 and 20-10-10) suitable for grains, fruits, vegetables, and cash crops, meeting diverse nutrient requirements at high volumes.
Product Highlights
- 10T/H stable continuous output with annual capacity of 70,000-90,000 tons; total nutrient content customizable between 15-35%
- Precision batching with error ≤±0.3%, uniform mixing, and high-efficiency granulation achieving ≥92% granule qualification rate
- Semi-automatic central control system reduces labor requirements by 45%; energy-efficient configuration lowers operational costs by 25%
- Corrosion-resistant alloy components with closed conveying system and integrated dust removal/deodorization, meeting environmental standards
Technical Specifications
| Item |
Specification |
| Capacity |
10 T/H (continuous) |
| Layout Space |
800㎡ |
| Granule Size |
2-4.75mm (national standard) |
| Total Nutrient Content |
15-35% (customizable) |
| Operation Mode |
Semi-automatic (central control) |
| Voltage |
380V(customizable) |
| Power Consumption |
≤160 kW/H |
| Labor Requirement |
5-7 operators/shift |
| Finished Moisture |
≤1.8% |
| Batching Error |
≤±0.3% |
